EVOCA 30H - Helvia

• IP66 Protection Type
• Built-in 30W/15W/7.5W/3.75W Multi-Tap Transformer
• Adjustable Power Taps with 100V / 70V / 8O Modes
• High Quality Plastic Housing

• Rated Power @ 100V: 30W / 15W / 7.5W / 3.75W
• Rated Power @ 70V: 15W / 7.5W / 3.75W / 1.9W
• Impedance: 8O / 333O / 666O / 1.3KO / 2.6KO
• Sensitivity: 105 dB (1W/1m)
• Frequency Range: 400Hz ~ 10KHz
• Max SPL: 116.8dB
• Protection Level: IP66
• Color: White
• Horn: Plastic
• Diaphragm: Phenolic
• Magnet: Ferric
• Mounting bracket: Stainless Steel
• Mounting holes: 3x Ø7.5mm (0.03 inch) holes with 30mm (1.2 inch) space
• Horn Size: Ø240 x 303mm (Ø9.45 x 11.93 inch)
• Net weight: 2,3 kg – 5.07 lbs.

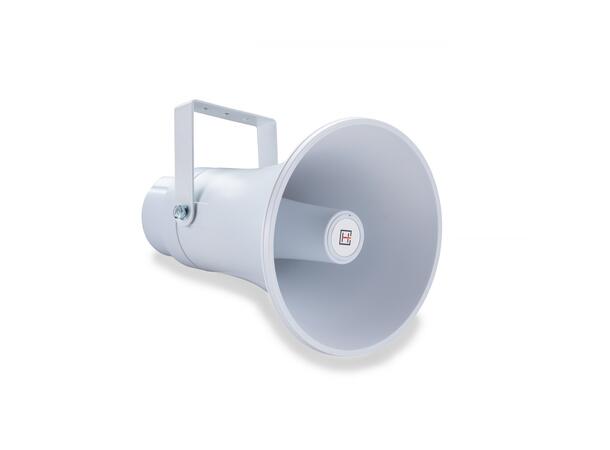

HELVIA EVOCA 30H is a compact, lightweight and waterproof horn speaker, designed to provide high efficiency and high sound intelligibility with low

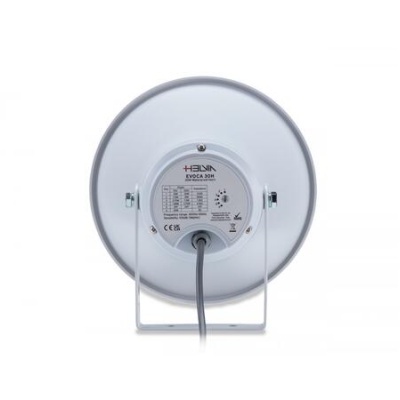

distortion. The built-in line transformer allows the horn to be connected to 70V and 100V constant voltage or low-impedance lines, and select the
power through the rotary dial on the rear cover. The horn can be easily mounted to any wall or ceiling by using the stainless-steel mounting bracket.
Thanks to the weatherproof treated plastic housing, the EVOCA 30H has an IP66 Ingress Protection standard, which make it suitable for outdoor
installations.
