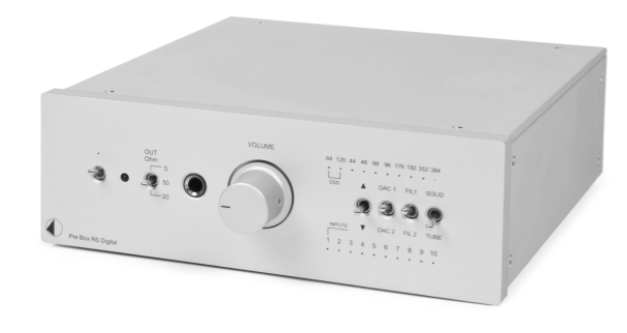

Pro-ject Audio PRE BOX RS DIGITAL

Class-A preamplifier with headphone output & built-in D/A converter (DSD capable) • Double 24bit/192kHz BurrBrown DAC chip (1792) for highest performance from one DAC • Additional second switchable 32bit/384kHz BurrBrown DAC chip for true 32/384 conversion • Pre Output XLR & RCA • Headphone amplifier can switch impedance and damping factor from front panel • Unique feature allows it to continuously change sonic character between Push-Pull (PP) to Single Ended (SE) • Dynamic range 132 dB • Asynchronous data transfer from USB 32bits/384kHz • Based on XMOS technology • Precision masterclock • Inputs: Asynchronous USB (max. 32bits/384kHz), 3x optical S/PDIF, 2x coaxial S/PDIF, AES/EBU digital, RJ45 I2S discrete differential digital input for CD BOX RS, RCA analogue, XLR analogue • Outputs: Headphone (6,3mm), Pre-Out, RCA, XLR, variable and fixed • Metal casing protects against vibration and interference • Dimensions: 206x72x200 (210)mm WxHxD (D with sockets) • Weight: 1950g Optional Upgrade: Linear power supply Power Box RS Uni 1 (or 4) for further improved sound quality
