STILE 280H-SET - Helvia

Designed for high-quality sound capture in meetings and conferences
Ø8mm Condenser Capsule
Super-Cardioid Polar pattern
50cm (2” ca.) Reference Sound-Seceiving Distance
Superior off-axis rejection for maximum gain before feedback
RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
280mm (11,02”) long Gooseneck microphone with bend at bottom
750g (26.5oz.) heavy base with electronic touch-switch and LED
Strong 3-pin Input connector with thread
3-pin Mini-XLR output connector
3V internal Phantom Power with batteries
Accepts external Phantom Power from 3V to 48V
Foam windscreen included and 5m cable included

• Element: Condenser
• Polar pattern: Super-Cardioid
• Gooseneck length: 280mm (11.02”)
• Reference sound-receiving distance: 50cm (20” ca.)
• Frequency response: 30Hz - 20kHz
• Sensitivity: -45dB ±1dB (0dB=1V/Pa @ 1kHz)
• Output Impedance: 75O
• Max input SPL: 110dB (1kHz @ 1% T.H.D)
• Phantom power requirement: 3V - 48V DC, 0.5mA typical
• Protections: RFI-shielding (mobile phone / electromagnetic / high frequency interference)
• Controls: On/Off LED and Switch with electronic touch
• Batteries: 2x 1.5V AAA-Type Alkaline (not included)
• Input Connector: 0.63” (16mm) CESS Aviation 3 pins with thread (balanced)
• Output Connector: 3-Pin Mini-XLR output connector (balanced)
• Cables: 3-Pin Mini-XLR Female to 3-Pin XLR Male cable, 5m length
• Microphone Size (WxD): 280 x Ø19mm (11.02” x Ø0.75”)
• Wind-screen Size (WxD): 150 x Ø22mm (5.90” x 0.87”)
• Base Size (WxDxH): 93 x 144 x 50mm (3.66” x 5.67” x 1.97”)
• Base Weight: 750g – 26.45oz. (batteries not included)
• Microphone Weight: 53g (1.87oz.)

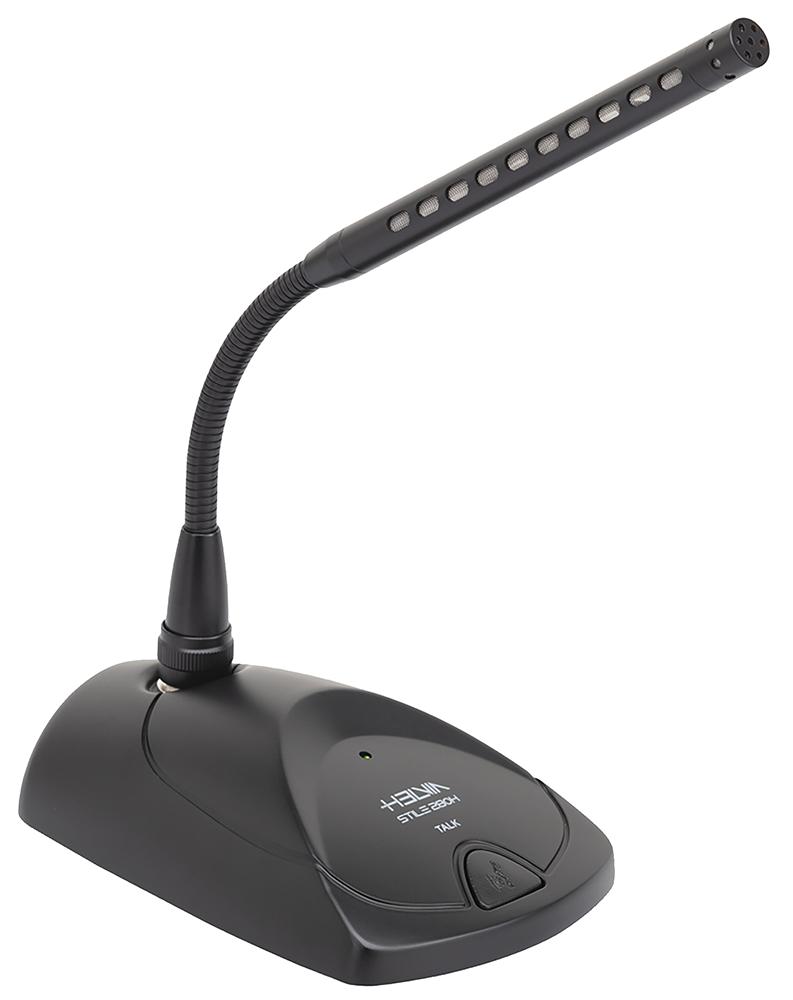

STILE 280H SET is composed of a 280mm Mini-shotgun Super-Cardioid Microphone and a solid and robust 750g microphone base in die-cast
for maximum stability even in the case of accidental bumps on the microphone. The solid connection of the microphone to the base is assured
by a 3-pin CESS Aviation connector with safety thread, which removes any movements of the microphone during placement or direction
adjustment. The internal circuit of the base offers outstanding rejection of radio frequency interference (RFI), a switch with electronic touch,
and internal 3V or external 10-48V Phantom Power.
The mini-shotgun microphone delivers high-level performance, control, and flexibility for meetings and conferences. Its high-quality cartridge
with super-cardioid polar pattern delivers good control in difficult acoustic conditions. The result is superior voice capture and lower pickup of
room noise compared to standard cardioid gooseneck microphones. The bend at bottom allows precise placement.
